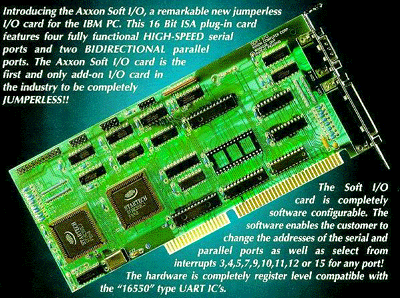

| MODEL
42 Data Sheet |
|
|
•
|
Quad
High Speed RS232C Serial Ports |
|
•
|
16550
(16 Byte Buffer) Serial Ports |
|
•
|
Serial
I/O : 0x3F8, 0x2F8, 0x3E8, 0x3A0 |
|
•
|
Parallel
I/O : 0x3BC, 0x378, 0x278 |
|
•
|
Dual Bi-directional Printer Ports |
|
•
|
IRQ
3, 4, 5, 7, 9, 10, 11, 12, 15 |
|
•
|
Software
Configuration |
|
•
|
TL16C552
UARTs |
| • |
Designed
and Assembled in Canada |
|
$99.95
(US)
|
| Advanced
Features |
| |
•
QUAD HIGH SPEED 16550 UARTs with RS232C SERIAL PORTS
• 16 Bit ISA/EISA Bus compatible
• Software Configurable Hardware
|
| Specifications |
| |
Number
of Serial Ports : 4 |
| Port
Compatibility |
| |
Serial Port: 16550 - 16 Byte Buffer (Standard)
Parallel Port: Unidirectional / Bi-directional
|
| Electrical
Interface |
| |
RS232C
compatible |
| Max
speed of Serial Ports |
| |
115K
Baud (Default) |
| Serial
Port I/O Addresses Supported |
| |
0x3F8, 0x2F8, 0x3E8, 0x3A0 (Software Configurable) |
| Interrupts
Supported |
| |
•
Support for Interrupt (IRQ) Sharing of all 4 Serial
Ports on Model 42 I/O Card
• Interrupts Modes: Unique, Shared (Serial Ports)
|
| Available
Configurations |
| |
• Quad High Speed 16550 Serial Ports (16
Byte Buffer)
• Dual Bi-directional Parallel Ports
• Optional addressing available upon request
|
|
5
YEAR WARRANTY ON ALL CARDS
|
|
Call
us at 1-800-361-1913 to order yours now!
|
|
|
