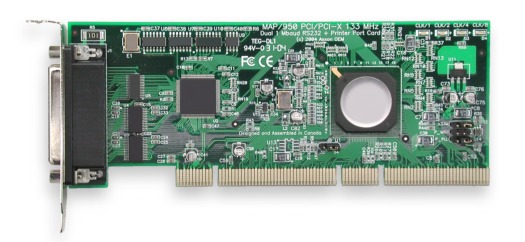

MAP/950 2 RS232 Serial + 1 EPP/ECP Parallel Port I/O Card 64-Bit 133 Mhz 3.3 Volt PCI / PCI-X (Model #IC0631KB)



Looking for a 64-Bit PCI/PCI-X RS232 2S1P Multiport card ?

Add 2S1P ports to your server chassis in seconds !

Compatible with 3.3 & 5 volt 32/64 bit expansion slots



The industry's FIRST 2S1P Multiport adapter to support

33 Mhz, 66 Mhz, 100 Mhz, 133 Mhz PCI / PCI-X

bus speeds without compromise

STOP slowing down your PCI-X bus to 33 Mhz !

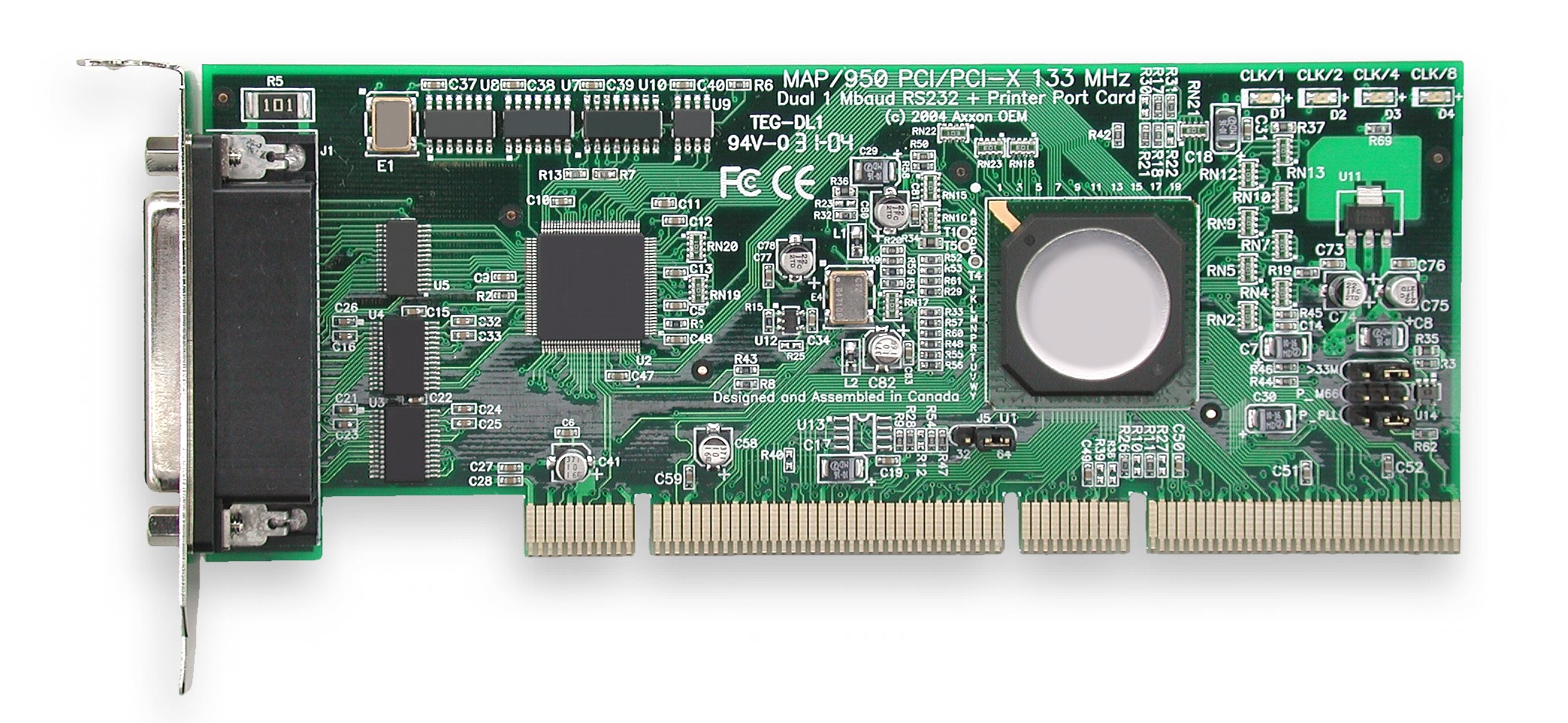

Click for PCI-X Serial & Parallel Port high resolution product picture

State of the art design operates at host bus speeds

2 (Dual) Serial Port RS232 I/O + 1 Parallel Port Card

for 3.3 / 5 volt PCI / PCI-X 32 or 64-Bit expansion slots

Suitable for Low / Standard height mounting

Compatible with all IBM, HP, Compaq, Dell, Intel Servers

Introducing the industry's FIRST and ONLY add-on 2 serial (16950) + 1 parallel (EPP/ECP compatible) adapter capable of 133 Mhz PCI-X operation. Till now, a commonly shared PCI-X bus will SLOW down to accomodate the 32-bit 33 Mhz add-on adapters. This cutting edge design permits a quick installation of 2 of RS232 serial + 1 of parallel port to any brand of server. Using advanced PCI-X technology, Axxon has broken the speed bottleneck.

Run your server chassis to its full potential today !

Order Part #IC0631KB

Also see Part # IC0573KB for PCI-X Compatible 4 Port Serial

  Compatible with 3.3 volt & 5 volt PCI / PCI-X slots - Dell, HP/Compaq, IBM, Intel chassis
  Use in 32 / 64 Bit PCI / PCI-X bus slots
  Low and Standard Height Mounting brackets included
  Confirmed operation with printers, external parallel port devices and security dongles.
  30kv ESD Static Parallel Port Protection - Highest level of ESD Protection
  5 Year product replacement warranty
  Parallel Port Compatible with Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Aladdin HASP/Hardlock, DESKey, Dallas iButton, Wibu, Eutron, Globe dongles. Additional dongle support is under development.
Dual (2) High Speed 16C950 Serial + Single (1) Parallel Port for PCI / PCI-X expansion slots
Bus speed support of 33, 66, 100, 133 Mhz at 32 / 64 bits
Advanced design does NOT slow down host bus speed!
Standard and Low Height mounting
Complex Cable Included (HD44M to 2 of DB9M + 1 of DB25F)
16C950 UART ( 8x buffer than 16550)
128 Byte Transmit / Receive Buffers
Hardware Auto-Flow Control

TRUE 1 Megabaud RS232 Transceivers

Plug & Play Compatible

Software Selectable NON-VOLATILE Clock Divisors

RS232F Electrical Interface
15 kv ESD Surge Serial Port Protection
30 kv ESD Parallel Port Protection
Short-Circuit / Thermal and current protected RS232 transceivers
Transceivers contain onboard charge pump

Device Driver support for:

Dos & Novell (Parallel Port)

Win 95 / 98

Win ME

Win XP / XP Pro

Win NT / NT Server

Win 2000 / 2000 & 2003 Server

Embedded XP

Plug & Play in Linux

(Tested in RH 7.x, 8.x, 9.x and more)

QNX, OS/2 (Warp 4.0) - Contact us

PCI Bus 2.3 Compatible

Compatible with AMD Athlon / Pentium CPU Motherboards
IRQ Sharing Capable (All 4 ports use SINGLE Interrupt)
Designed and Assembled in Canada
High Density 44 Male to 2 of DB9 Male + 1 of DB25 Female 3' Cable Included

Spare Cable : HD44M to DB9M/DB25F

Call us at 1-800-361-1913 for details!

Product Installation Guide

Windows Device V4.06 Drivers for MAP/950 Family

Linux Installation Documentation
