MAP/950 2 RS232 Serial + 1 EPP/ECP Parallel Port I/O Card for PCI Express (PCIe) (Model #LF719KB)


Looking for a PCI Express RS232 2S1P Multiport card ?

Add 2S1P ports to your PCIe computer in seconds !

Compatible with 1x, 4x, 8x, 16x lane PCI Express slots

From THE LEADER in PCI Express I/O Card designs.



The industry's most featured PCI Express 2S1P Multiport adapter to support

x1, x4, x8, x16 Lane bus slots

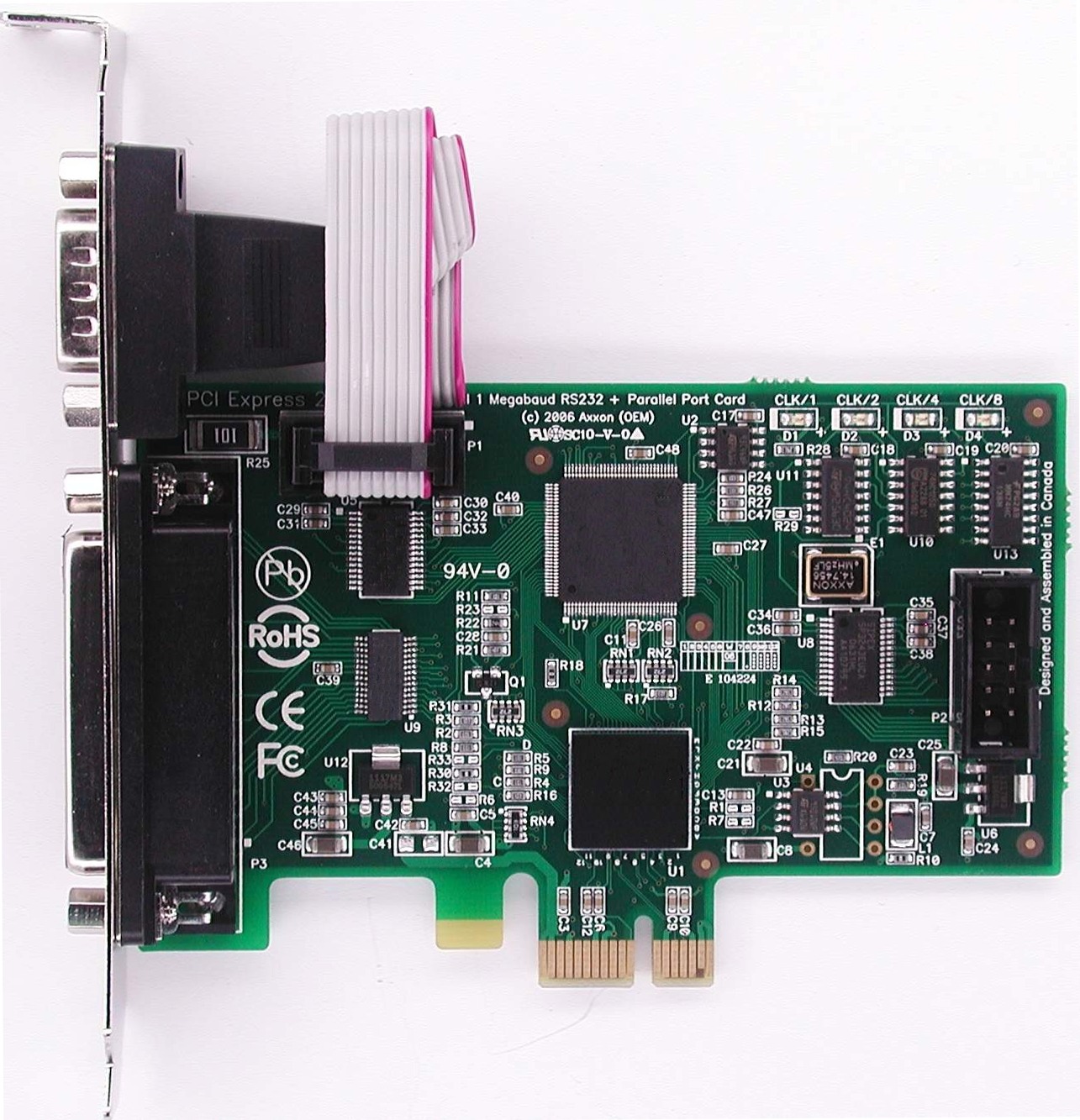

Click for large picture of the PCI Express (PCIe) LF719KB adapter

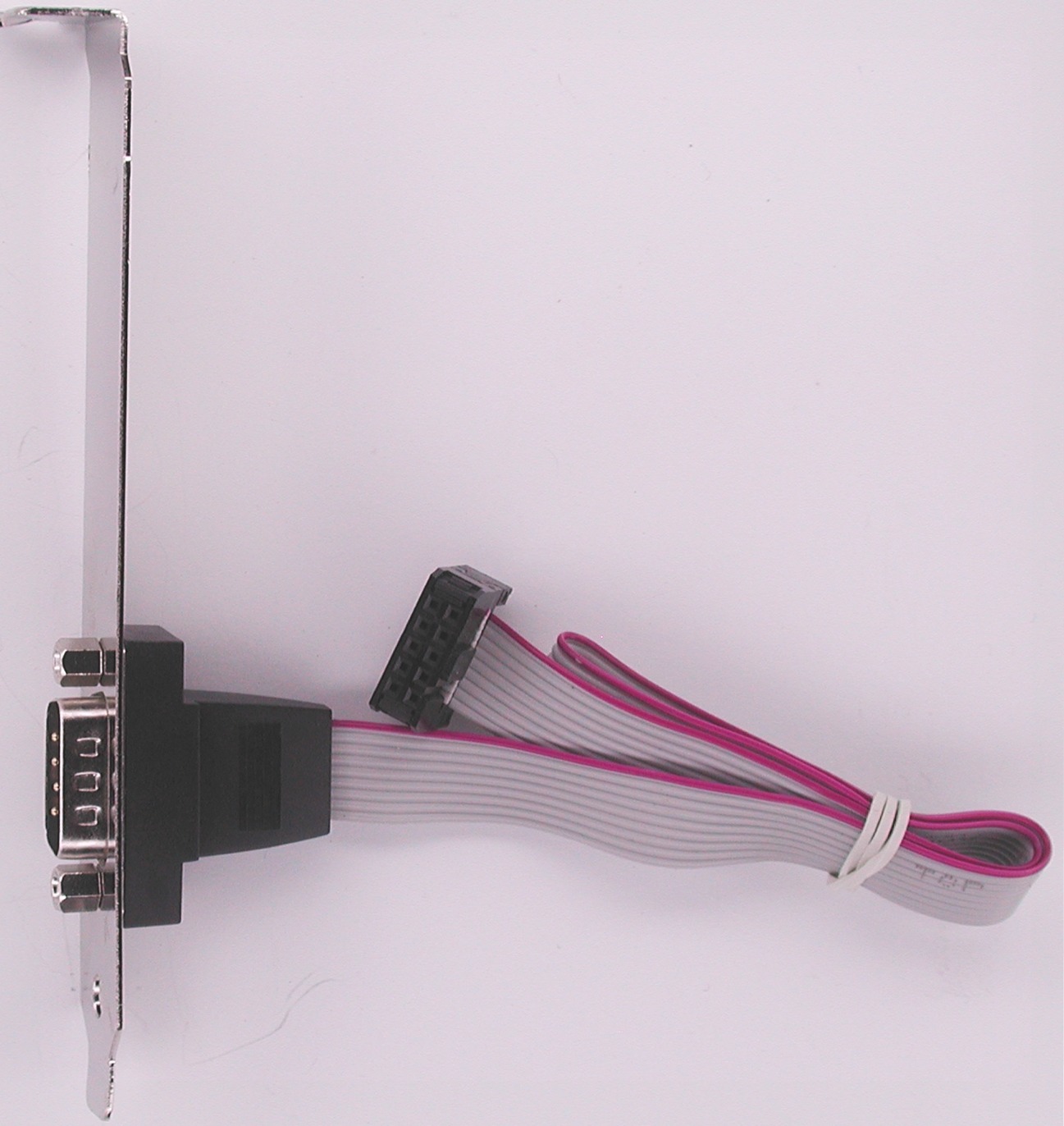

Click for large picture of the included add-on cable



2 (Dual) 16950 UART Serial Port RS232 + 1 Parallel Port I/O Card

for x1, x4, x8, x16 lane PCI Express expansion slots.

Suitable for Standard height mounting (Low profile is optional)

Compatible with all PCI Express motherboards



Introducing the industry's most featured add-on 2 serial (16950) + 1 parallel (EPP/ECP compatible) adapter for PCI Express. This cutting edge design permits a quick installation of 2 of RS232 serial + 1 of parallel port to any brand of computer system with a PCI Express expansion slot. Support is provided for Microsoft Windows 9x, ME, 2000, XP, XP64, NT4, 2003-32 bit, 2003-64 bit, QNX, OS/2 Warp 4.0, Vista 32/64 and Linux. Furthermore, Linux users will welcome the ease of installation of this advanced card by not having to recompile kernels, without embedding add-on device drivers, without inserting add-on modules. The Axxon LF719KB card is Plug & Play supported by all current Linux kernels. Count on Axxon to provide unrivalled no-charge toll-free (US/Canada) technical support by Design Engineers. Find out today why we are the #1 choice of international OEMs for PCI, PCI-X and now PCI Express designs. We welcome requests from volume integrators world-wide.



Order Part #LF719KB

Part # LF719KB is RoHS & Pb-free compliant



  Compatible with all brands / models of computer systems with PCI Express (PCIe) expansion slots
  Use in x1, x4, x8, x16 lane bus bus slots
  Standard Height Mounting brackets are included (Low profile bracket set is optional)
  Confirmed operation with printers, external parallel port devices and security dongles.
  30kv ESD Static Parallel Port Protection - Highest level of ESD Protection
  5 Year product replacement warranty. Technical support from Design Engineers.
  Parallel Port Compatible with Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Aladdin HASP/Hardlock, DESKey, Dallas iButton, Wibu, Eutron, Globe dongles. Additional dongle support is under development.
Dual (2) High Speed 16C950 Serial + Single (1) Parallel Port for PCIe / PCI Express expansion slots
Bus design compatible with 1x, 4x, 8x, 16x lane expansion slots
Standard Height mounting (Low height mounting bracket kit is optional)
Standard size mounting brackets included
IDC cable to DB9M set x 2 is included
16C950 UART ( 8x buffer than 16550)
128 Byte Transmit / Receive Buffers
Hardware Auto-Flow Control

TRUE 1 Megabaud RS232 Transceivers

Plug & Play Compatible

Software Selectable NON-VOLATILE Clock Divisors

RS232F Electrical Interface
15 kv ESD Surge Serial Port Protection
30 kv ESD Parallel Port Protection
Short-Circuit / Thermal and current protected RS232 transceivers
Transceivers contain onboard charge pump

Device Driver support for:

Dos & Novell (Parallel Port only)

Win 95 / 98

Win ME

Win XP / XP Pro

Win NT / NT Server

Win 2000 / 2000 & 2003 Server

Embedded XP / XP Pro / WinXP64

Vista 32 & 64

Plug & Play in Linux (32/64 Bit)

* No drivers, No add-on modules and No kernel rebuilds required

QNX, OS/2 (Warp 4.0)

Designed and Assembled in Canada
